品牌 | 德国LaVision | 型号 | LaVision ParticleMaster-IMI |
Interferometric Mie Imaging

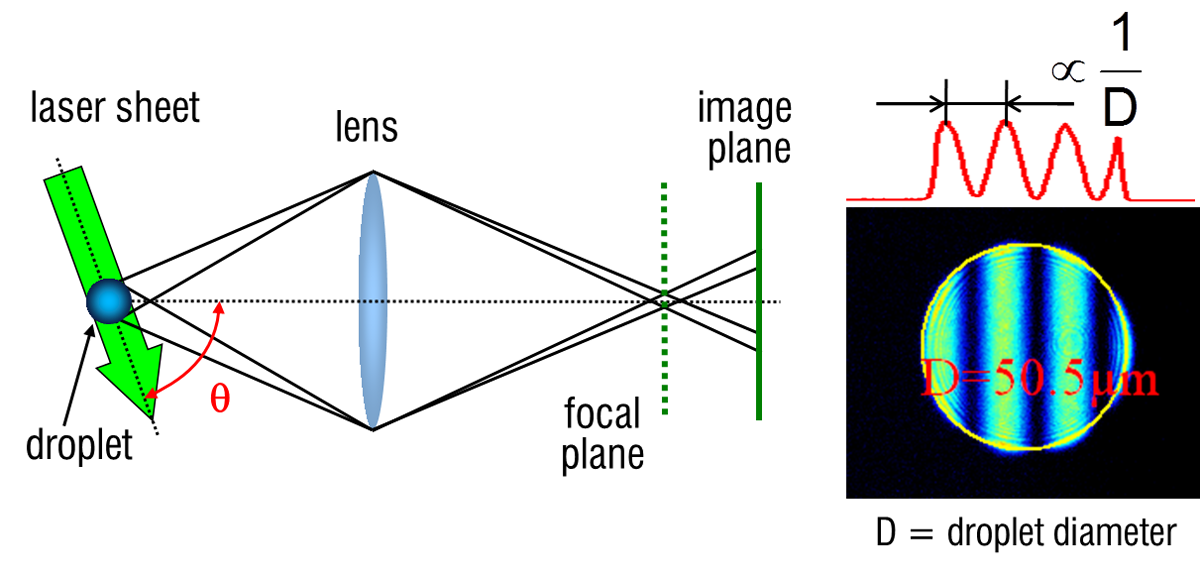

LaVision’s ParticleMaster IMI imaging system is optimized for spray investigations of smaller droplets at low and medium droplet densities. Defocused Mie scattering is used to generate a fringe pattern from each droplet with its fringe spacing related to the droplet size. This intererometric sizing method is limited to transparent and spherical droplets. The ParticleMaster IMI system is hardware compatible with LaVision’s FlowMaster 2D or Stereo PIV systems.
autodetection with droplet location from a single camera
droplet size from fringe pattern analysis
droplet velocity derived from double frame exposures
velocity - size correlations, histograms, scatterplots

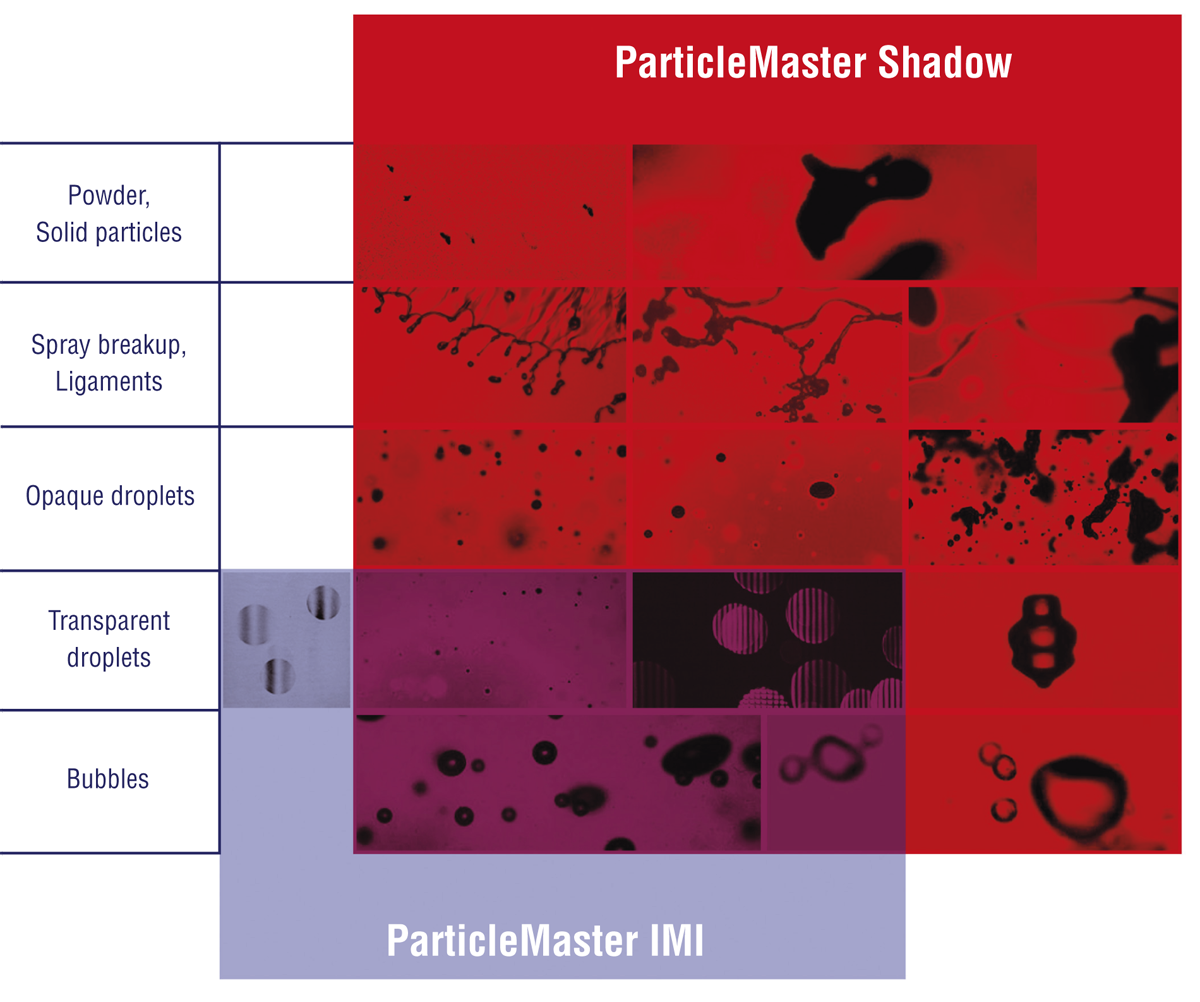

Shadowgraphy vs. Interferometric Mie Imaging
Both, ParticleMaster Shadow and IMI are based on imaging techniques to measure particle size. Their limit to smaller size is determined by the nature of light. While the shadowgraphy technique uses a direct image, IMI is based on coherent light scattering and allows to extend the range of detectable droplets to even smaller sizes.
