德国LaVision ICOS 内燃机光学传感器技术参数
| 品牌 | 德国LaVision | 型号 | ICOS |
德国LaVision ICOS 内燃机光学传感器详细介绍
Optical Engine Indication - ICOS
LaVision’s Internal Combustion Optical Sensors (ICOS) measure crank angle resolved air/fuel ratio, exhaust gas concentration, EGR-rate and gas temperature directly inside the cylinder. The optical sensor is integrated into a spark plug, a glow plug or positioned at any other in-cylinder location using M5-probes. Transmission probes are available for path integrated cross-cylinder measurements.
air/fuel ratio
CO2 concentration, EGR-rate
gas temperature
water concentration
gasoline, Diesel, CNG
combustion stability
consecutive cycles analysis
for transient phenomena
compact, easy to handle
precise single cycle analysis
crank angle resolved data
ultra-fast response time
unmodified engines, real fuel
test bed synchronization
no gas sampling
wide choice of probe designs
ICOS System
Optical indication of fuel density, lambda value,CO2 and EGR-rate

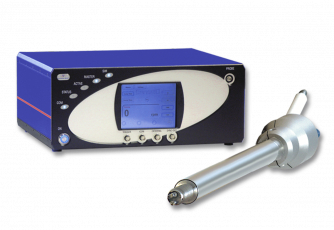

ICOS-CNG System
Optical indication of CNG fuel density and lambda value
ICOS-Temperature System
Optical indication of gas temperature and H2O concentration

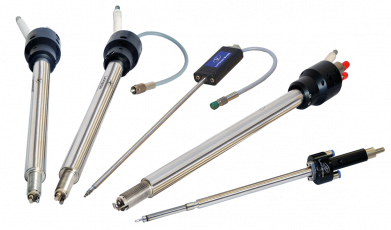

ICOS Probes

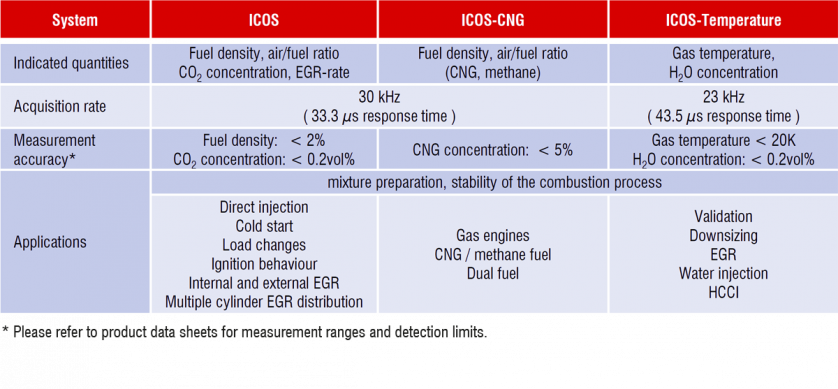

Engine probes for ICOS systemsICOS system specifications and application fields
ICOS (english)
Evaluation of Mixture Formation in a CNG-Fueled Engine
Transient Analysis of Lambda and EGR
