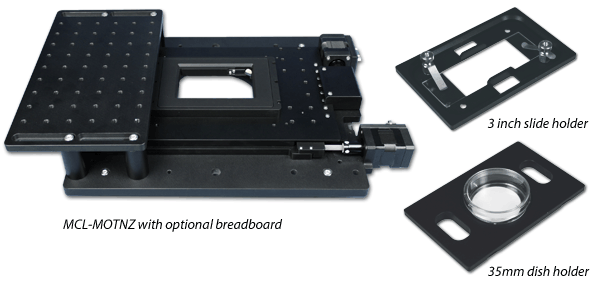

The MCL-MOTNZ is a value priced positioning system for use with inverted optical microscopes. The MCL-MOTNZ combines a stepper motor XY linear motion stage with a closed loop, high resolution, Z-axis nanopositioning system. The micropositioning stage provides 25 mm of travel per axis with a minimum step size of 95 nm. The use of high precision components and our proprietary intelligent control technique results in an ultra-stable microscope platform with excellent native precision without the addition of costly encoders.
The MCL-MOTNZ z-axis nanopositioner has a travel range of 200 microns and integrates into the nano-qualified microstage. Internal position sensors utilizing proprietary PicoQtechnology provide absolute, repeatable position measurement with sub-nanometer resolution under closed loop control.
The MCL-MOTNZ system includes our compact series of USB 2.0 enabled Nano-DriveC and Micro-DriveC controllers. These controllers are fully compatible with user written LabVIEW software and are provided with a basic LabVIEW motion control routine for positioning in all axes. Optional wireless joystick control is also available.
The MCL-MOTNZ is the complete nanometer positioning system for single molecule spectroscopy and high resolution microscopy applications. The MCL-MOTNZ is compatible with Olympus IX Series, Nikon TE/Ti Series, Leica DMI Series, and Zeiss Axiovert/Axio Observer Series. MCL-MOTNZ systems are also compatible with other configurations and direct mounting to optical tables.
TheMCL-MANNZcombines a manual micrometer XY stage with a closed loop, high resolution, Z-axis nanopositioning system for an affordable alternative that is easy to control. For combined stepper motor XY with XYZ piezo stage, see theNano-ViewSeries. For combined manual XY translateion with XYZ piezo stage, see theNano-View/M Series.
Compatible Software Packages:
     |
