德国LaVision背景来源纹影(BOS)温度成像测量系统
品牌德国LaVision
型号FluidMaster-BOS
同类产品图像数据采集分析软件-DaVis(24件)
供应商报价

面议

所在地欧洲 德国
北京欧兰科技发展有限公司

第1年

企业类型:国有
所在地:北京 海淀区

售全国

经营业务:
更新时间:2024-06-22 09:42:20
进入展台

最新产品

德国LaVision背景来源纹影(BOS)温度成像测量系统技术参数
品牌 德国LaVision 型号 FluidMaster-BOS
德国LaVision背景来源纹影(BOS)温度成像测量系统详细介绍

no-img
BOS imaging of a thermal flow

Background Oriented Schlieren: BOS Imaging

For the visualization of gas motion based on local refractive index variations Background Oriented Schlieren (BOS, also known as Synthetic Schlieren) is a simple and cost-effective alternative to laser imaging methods, because it doesn’t need any complex illumination device like a laser needed for laser imaging, and it works without seeding the flow.

BOS is a line-of-sight imaging technique and measures locally the density gradient as an integrated value over the line-of-sight. In practice, only a random dot pattern in the background of the flow is imaged with a high resolution camera before and during the test. By comparing the two pictures (or more precisely correlating the two patterns similar to the image correlation in PIV) the local displacement of the background pattern can be used to provide lateral information on path-integrated refractive index variations.

BOS
Imaging in Transparent Media
  • simple flow visualization technique without laser and flow seeding

  • advanced image correlation technique applied on background target

  • BOS software module in DaVis for quantitative density (temperature)
    imaging in 2D and axisymmetric flows

no-img

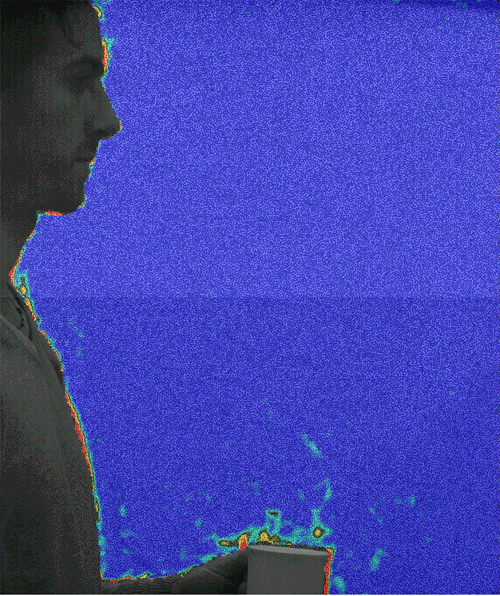

3D temperature field over a cup of coffee

Tomographic (Tomo) BOS Imaging

LaVision’s Tomo-BOS imaging systems measure quantitatively density or temperature fields in 3D using multiple camera BOS projections. This 3D imaging technique requires an accurate geometrical calibration of the multi-camera system and an iterative tomographic reconstruction algorithm.

Tomo-BOS
for 3D Flow Imaging
  • instantaneous 3D temperature (density) fields

  • flexible multi-camera setups

  • high-speed tomographic BOS imaging for time-resolved measurements


Product Information

no-img

Digital Schlieren Imaging

no-img

FluidMaster Tomographic BOS

no-img

Tomographic BOS
